PDQH
Single Stage
Systems
Pressure from
500 P.S.I. to 20,000 P.S.I.
Dual Stage Systems Available for Quick-fill
|
Model Number |
Maximum Pressure |
Piston Dia., In. |
Displacement Cu. In. |
|
PDQH 3000 |
3000 PSIG |
1.13 |
Max Leverage 2.0 Standard Leverage 4.0 |
|
Model |
Maximum |
Volume
at |
Pressure |
*Maximum |
Maximum |
|
1 Stage |
|||||
|
PDQC-1000 |
1000 PSI |
8.60 GPM |
10 TO 1 |
56 CFM |
100 PSI |
|
PDQC-3600 |
3600 PSI |
2.60 GPM |
36 TO 1 |
56 CFM |
100 PSI |
|
PDQC-10000 |
9700 PSI |
1.0 GPM |
97 TO 1 |
56 CFM |
100 PSI |
|
2 Stage |
|||||
|
PDQC-1000-2 |
1000 PSI |
25.60 GPM |
10 TO 1 |
112 CFM |
100 PSI |
|
PDQC-3600-2 |
3600 PSI |
19.60 GPM |
36 TO 1 |
112 CFM |
100 PSI |
|
PDQC-10000-2 |
9700 PSI |
18.00 GPM |
97 TO 1 |
112 CFM |
100 PSI |
* Total required CFM to produce rated at maximum pump.
This is relevant only when the system is used for continuous injection at maximum rated pressure.
Normal testing applications require much less CFM to begin with and fall to 0 at stall pressure
|
Type |
Depth |
Width |
Height |
Weight |
|
Box |
18" |
21" |
18" |
40 Lbs |
|

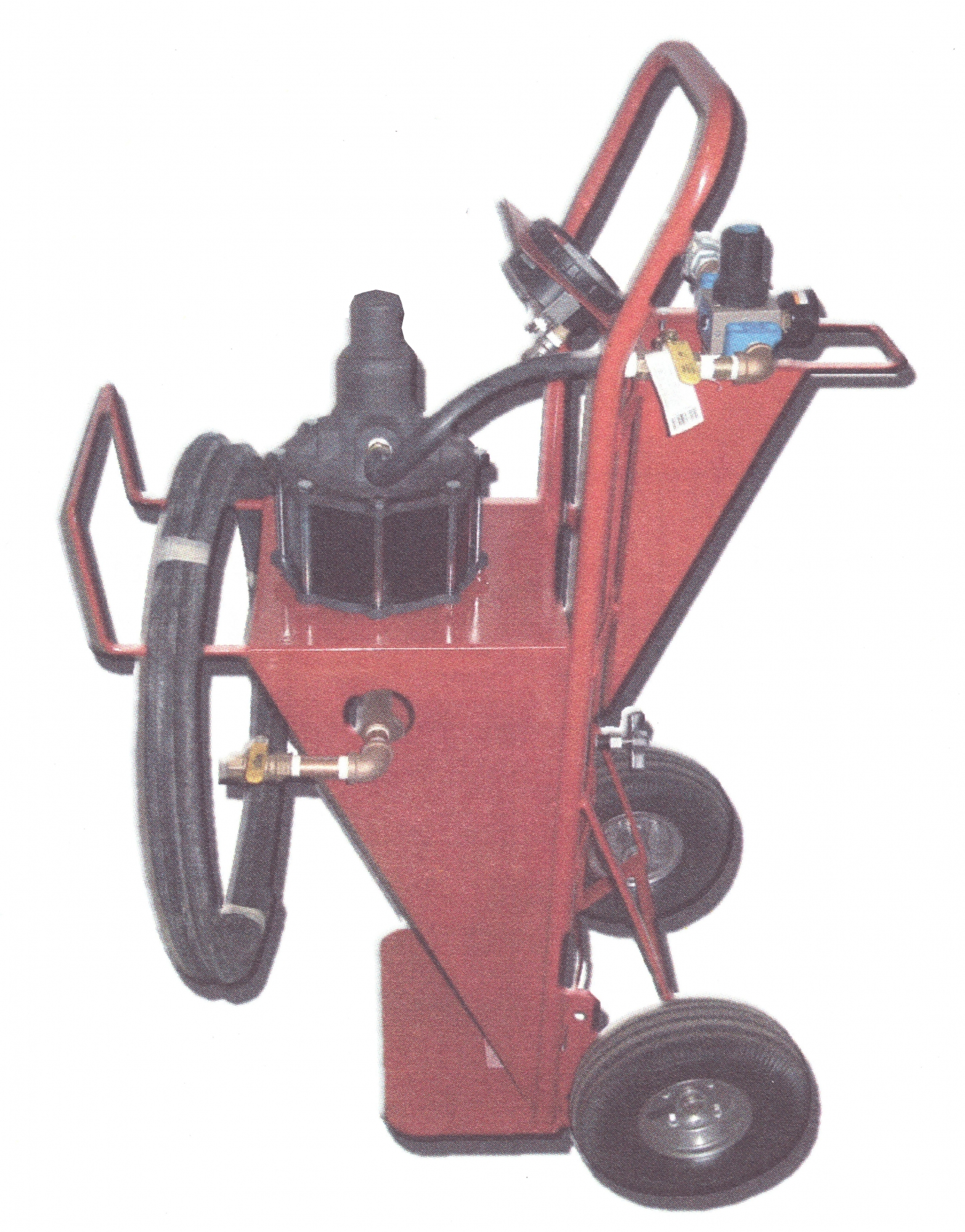

Cart |
26" |
14" |
46" |
70 Lbs |
|
Air Powered Motor (Dry Lube) High Pressure Bleed Valve |
Stainless and Brass Fittings Water Suction Strainer High Pressure Hose Included |
Stainless Steel Glycerin Filed Gauge Semi-Pneumatic Tires |
|
Box Weight – 40 Pounds Width – 21 Inches Depth – 11 Inches Height – 20 Inches |
Handle On Top Stackable for |
Cart Weight – 70
Pounds |
